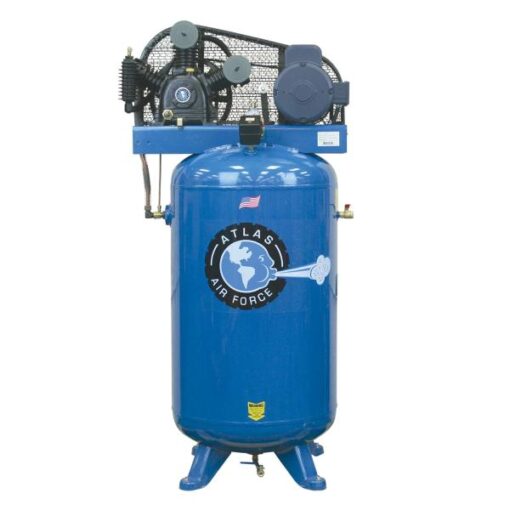

Atlas Air Force AF6 Two Stage 5 HP 220 Volt Single Phase 80 Gallon Air Compressor
$69.90
-
Limited-Time PromotionsDirect Pricing With Exclusive Discounts -
Fast & Free ShippingDelivered In Just 4–7 Days At No Extra Cost
-
Secure Payments & Easy ReturnsSafe Payments Plus Hassle-Free 30-Day Returns
-
Questions? Contact Us AnytimeWe Reply Promptly To All Inquiries — Contact Us
This is our entry level Atlas Air Force commercial grade two stage vertical air compressor. This unit operates between 140 LB. and 175 LB. PSI. The Atlas AF6 will run our SBC 420 sandblast cabinet (when used with #8 or #10 glass beads). The combination of the commercial grade low RPM motor and heavy duty 3 cylinder (2 cylinders are low pressure and one cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price.The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service.
Finance Your Air Compressor Today. Apply Now.
FREE SHIPPING
Features include
- FREE set of Vibro-Isolation pads
- Hands free tank drain extension
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation
- Slow RPM
- Extremely quiet operation
- Heavy Duty Metal Belt Guard
- Shipping Weight: 485 lbs
Specifications
| Atlas Air Force AF6 Specifications | |
| Motor Running | 5.0 Horsepower |
| Delivered-CFM 100PSI | 15.0 |
| Delivered-CFM 175PSI | 14.0 |
| Pressure Setting | 145 lb. – 175 lb. |
| Tank Capacity | 80 Gal. |
| Air Outlet Size | ” NPT |
| Overall Dimensions | L 24″ x W 24″ x H 65 7/8″ |
| Shipping Weight | 485 LBS. |
| Motor Voltage | 220VAC 1PH 60 Hz 22.5AMPS |
| Compressor Pump | CT40 3 Cylinder Two Stage |
